HMB quick coupler specification |
||||||||||
|
Model |
Unit |
HMB Mini |
HMB02 |
HMB04 |
HMB06 |
HMB08 |
HMB08S |
HMB10 |
HMB17 |
HMB20 |
|
Operating Weight (kg) |
KG |
30-40 |
50-75 |
80-110 |
170-210 |
350-390 |
370-410 |
410-520 |
550-750 |
700-1000 |
|

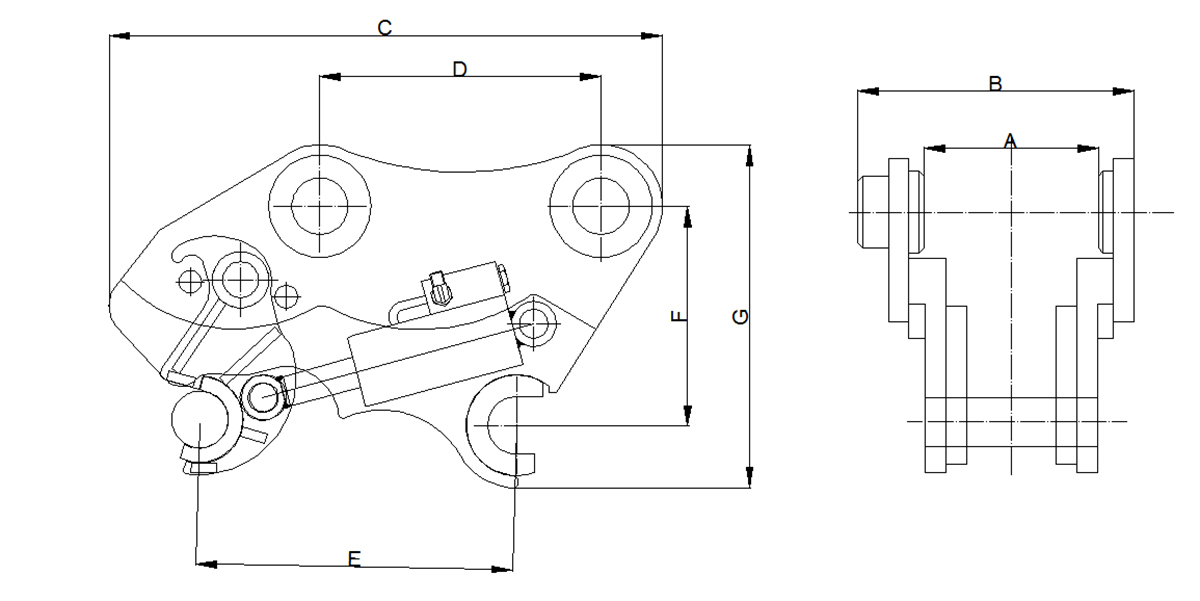

Overall Length(C) |
MM |
300-450 |
520-542 |
581-610 |
760 |
920-955 |
950-1000 |
965-1100 |
1005-1150 |
1250-1400 |
|
Overall Height(G) |
MM |
225-270 |
312 |
318 |
400 |
512 |
512-540 |
585 |
560-615 |
685-780 |
|
Overall Width(B) |
MM |
150-250 |
260-266 |
265-283 |
351-454 |
450-483 |
445-493 |
543-572 |
602-666 |
650-760 |
|
Forearm open Width(A) |
MM |
82-180 |
155-172 |
180-205 |
230-317 |
290-345 |
300-350 |
345-425 |
380-480 |
420-520 |
|
Retractable distance of oil cylinder(E) |
MM |
95-200 |
200-300 |
300-350 |
340-440 |
420-510 |
450-530 |
460-560 |
560-650 |
640-700 |
|
Pin Diameter |
MM |
20-40 |
40-45 |
45-55 |
50-70 |
70-90 |
90 |
90-100 |
100-110 |
100-140 |
|
Top to bottom pin distance(F) |
MM |
170-190 |
200-210 |
205-220 |
240-255 |
300 |
320 |
350-370 |
370-380 |
400-500 |
|
Pin to Pin Center Distance(D) |
MM |
95-220 |
220-275 |
290-350 |
350-400 |
430-480 |
450-505 |
485-530 |
520-630 |
620-750 |
|
Working Pressure |
Kg/c㎡ |
30-400 |
30-400 |
30-400 |
30-400 |
30-400 |
30-400 |
30-400 |
30-400 |
30-400 |
|
Oil Flow |
L/min |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
|
Carrier Weight |
ton |
1-4 |
4-6 |
6-8 |
9-16 |
17-25 |
24-26 |
25-33 |
33-45 |
40-90 |
